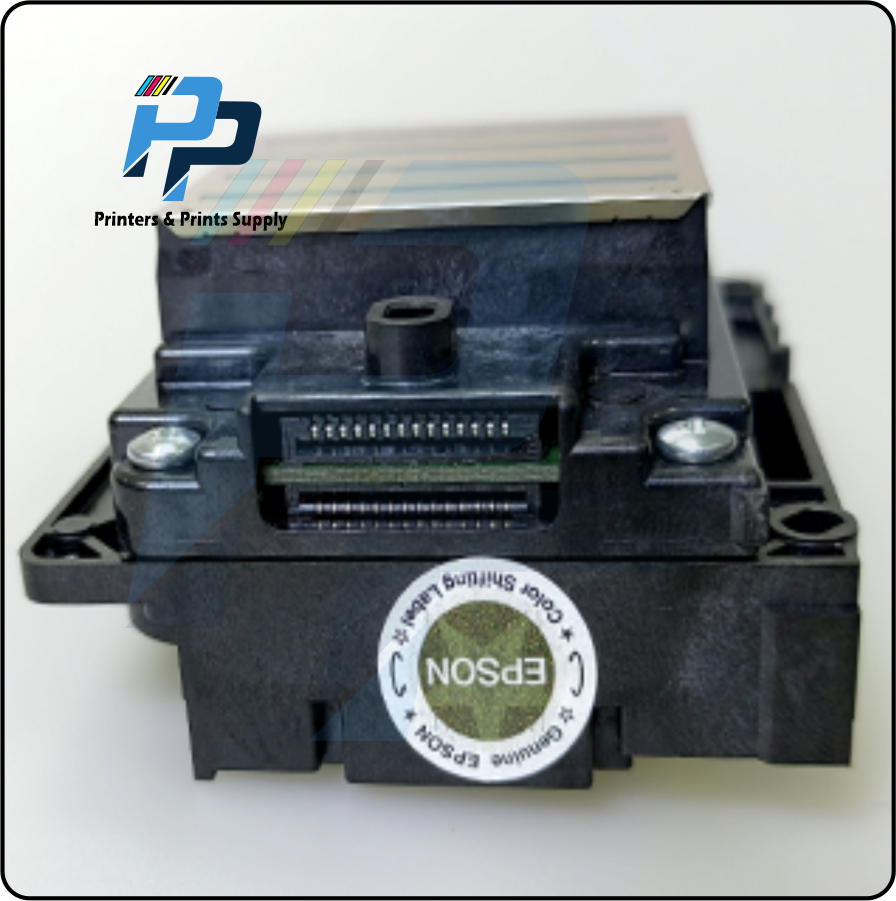

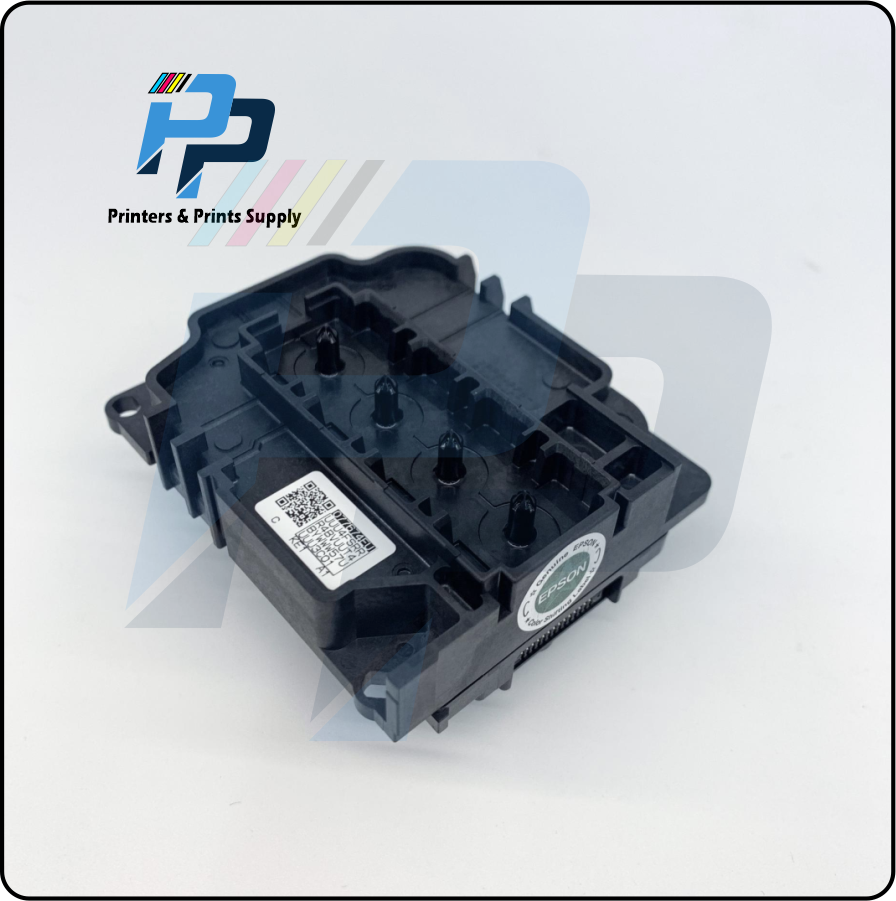

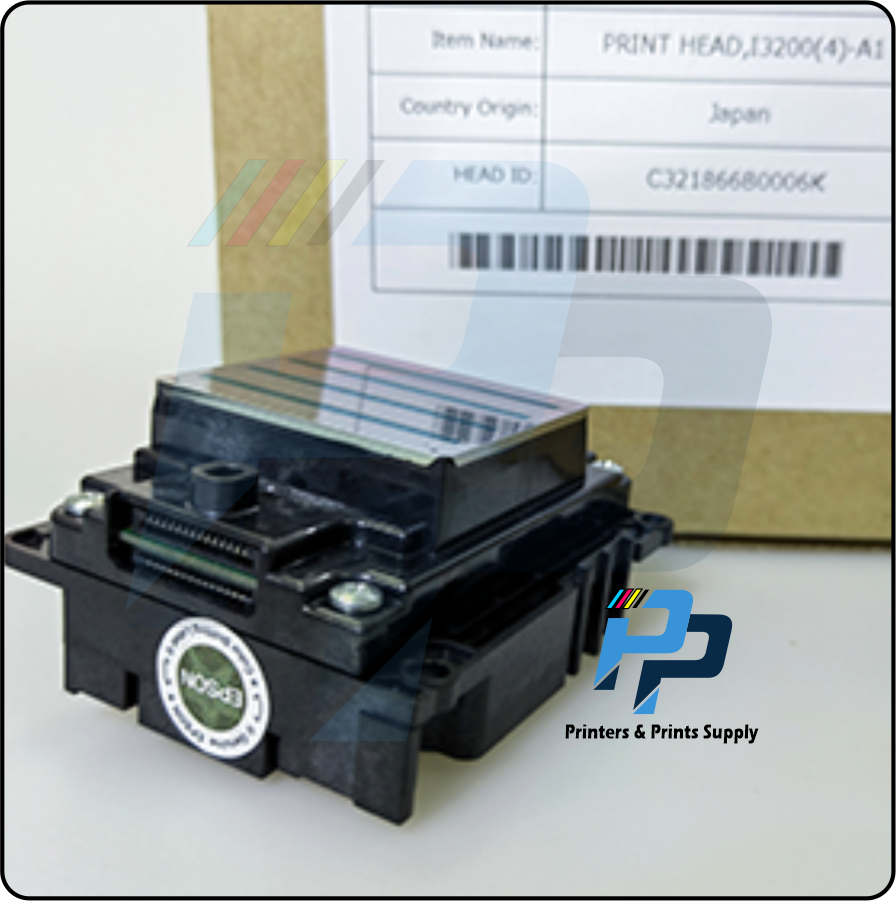

Epson i3200 A1 Printhead Description
The Epson i3200-A1 printhead is an economical series of 1.33-inch wide MEMS printheads that deliver exceptional productivity and image quality. With a high-density resolution of 600 dpi, it is specifically designed for DTF inks and is compatible with most large-format DTF printers, DTG printers, sublimation printing, and cardboard printing.
The Epson i3200-A1 is an economical print head with excellent quality and fast and stable printing speed. The i3200-A1 printhead has 3,200 nozzles (up to 600 dpi/2 lines), supports 4 water-based ink channels, and has variable droplet technology for grayscale printing.

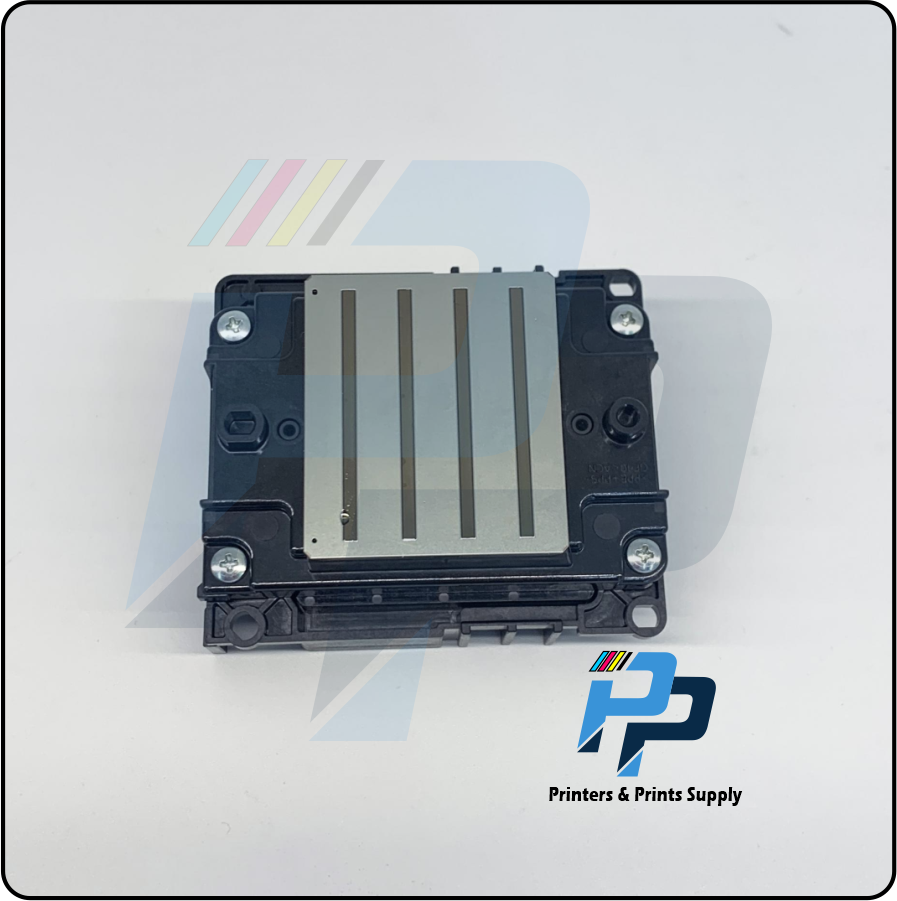

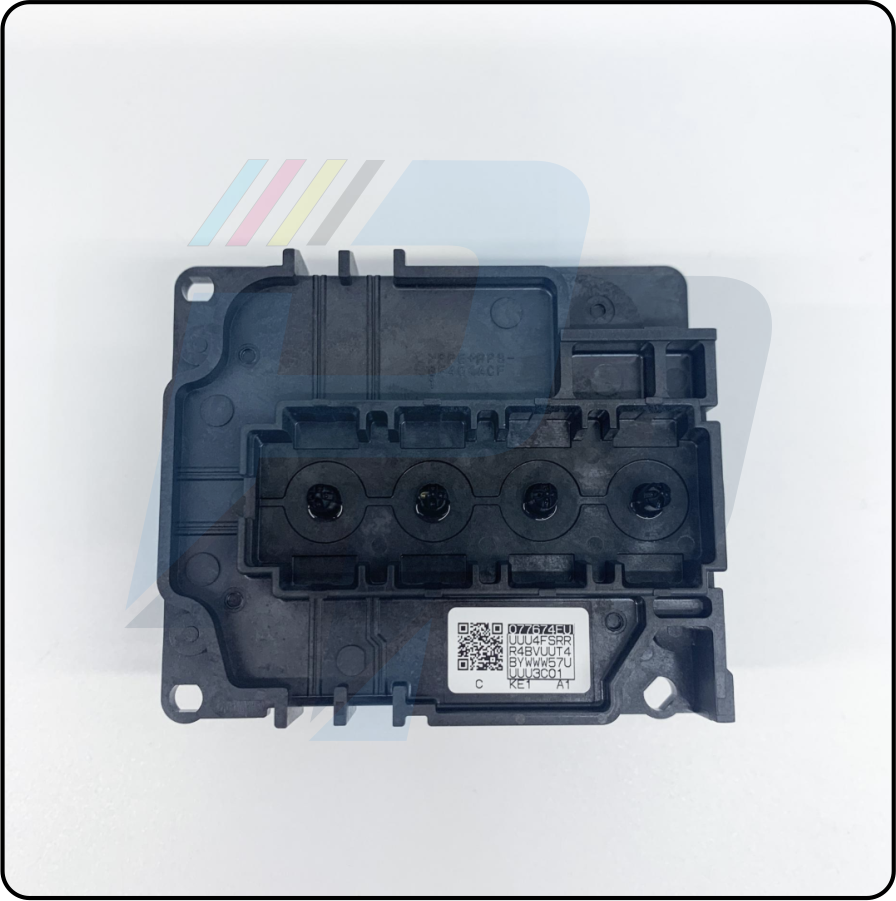

The Epson I3200-A1 and I3200-A1 HD printheads share the same structure, both featuring 8 rows of 400 nozzles, but they are not interchangeable. The I3200 supports 4 colors with 4 manifold inputs, each color using 2 nozzle rows. The I3200 HD supports 8 colors with 8 inputs, each color using 1 nozzle row.
Technical Specifications
| Type | PrecisionCore MicroTFP printhead |
| Number of nozzles | 3200 |
| Nozzle pitch/nozzle row | 1/300 inch |
| Nozzle Resolution | 300 npi/row 600 npi/2 rows |
| Max. number of color inks | 4 colours |
| Effective print width | 33.8 mm (1.33 inches) |
| Width x Depth x Height | 69.1 x 59.4 x 35.6 mm |
| Viscosity range | 3-4 mPa･s |
| Ink type | Water-based inks (such as sublimation, pigments, and dyes) |
