Description
Product description

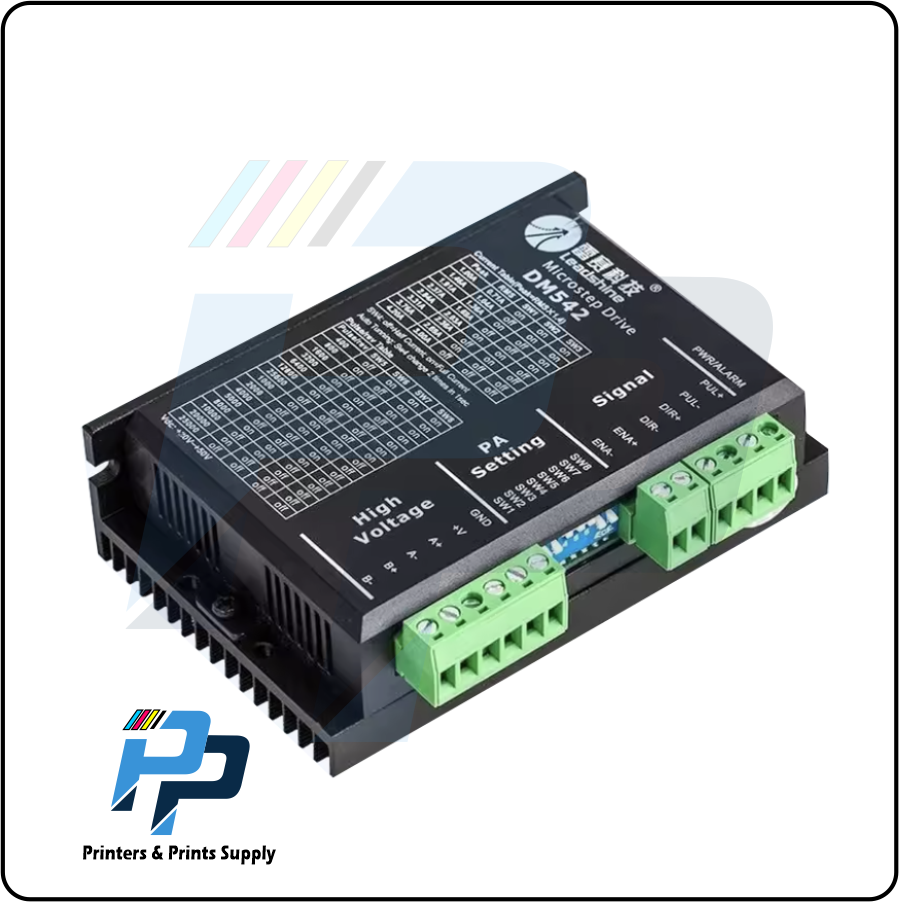

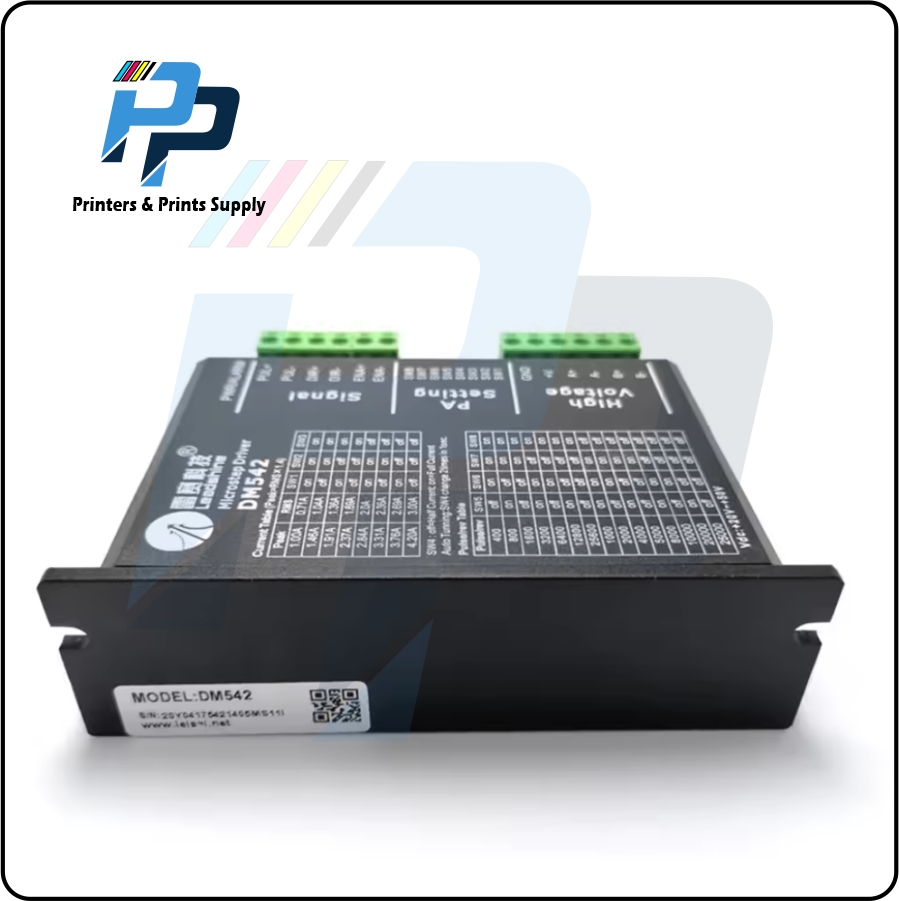

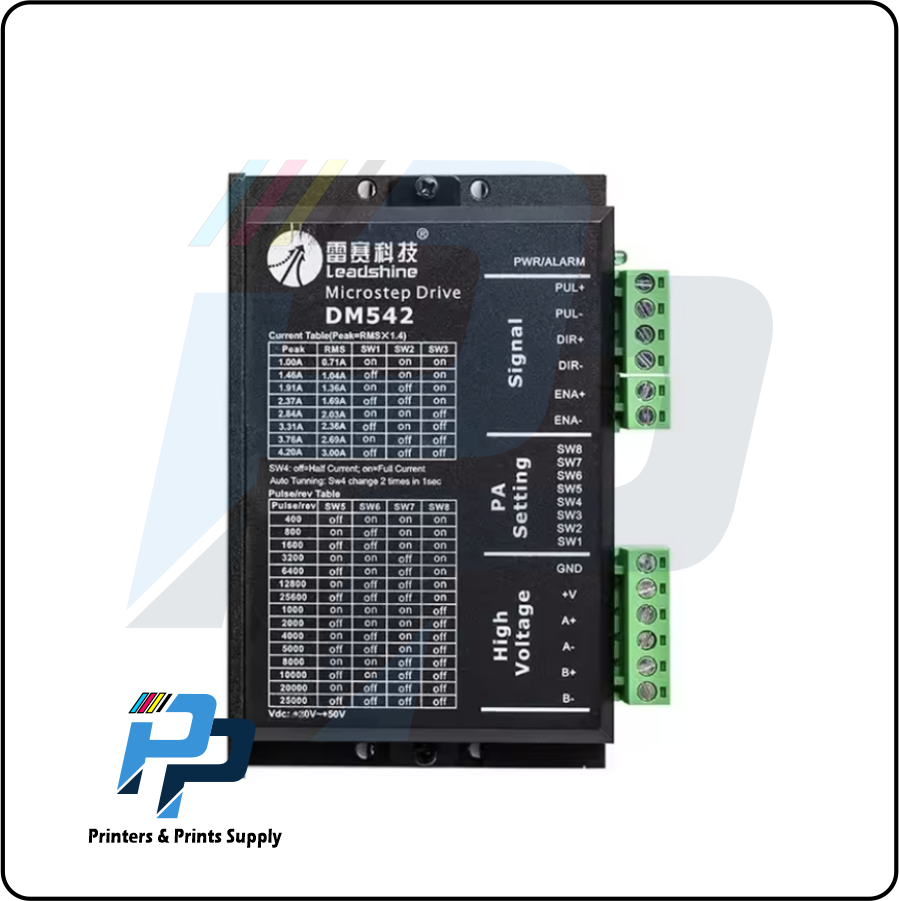

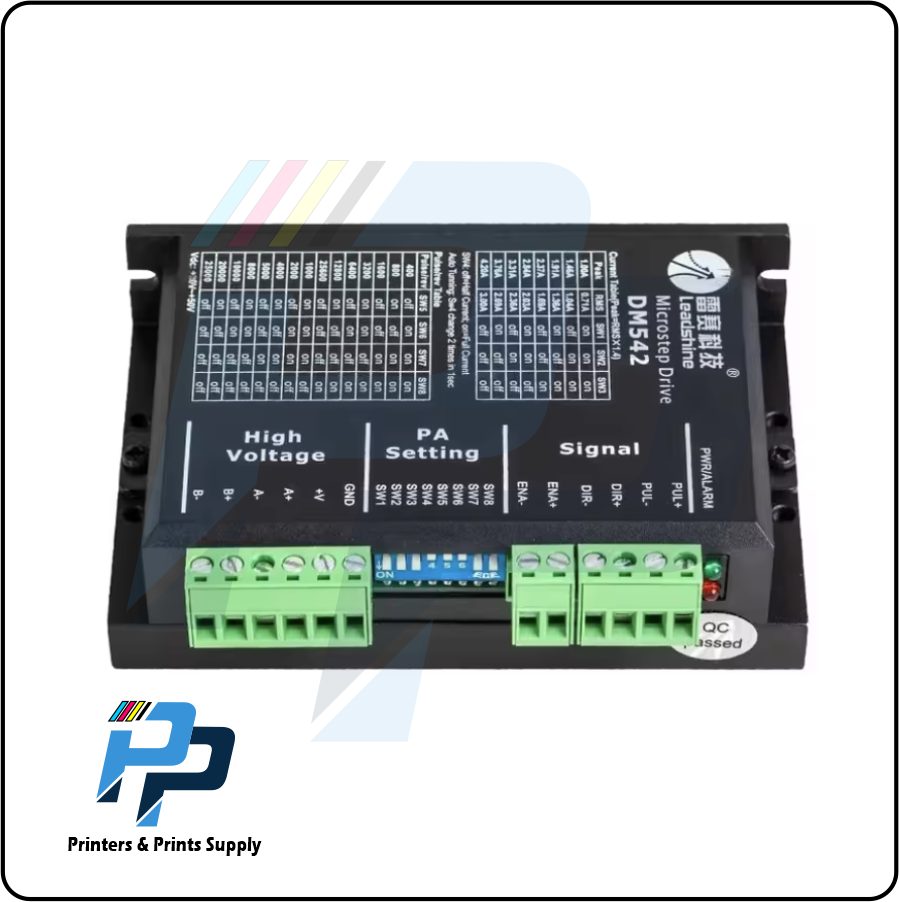

DM542 digital stepper motor driver adopts the latest 32-bit DSP technology, suitable for driving 57 and 86 series motors. It has excellent medium-low speed performance and can meet the application needs of most medium and small equipment.
Features:
1. Integrated with parameter self-tuning function, which can automatically generate optimal operating parameters for different motors.
2. Can drive 4-wire / 8-wire two-phase stepper motor.
3. Stable running and low noise under medium-low speed.
4. Precise current control greatly reduces the motor heat.
5. Optical isolation signal input, strong anti-interference ability.
6. With over-voltage, over-current protection.
Specification:
Model: DM542
Input voltage: 18-48VDC, 24V(Typical)
Output current: 1.0-4.2A
Pulse response frequency: 200kHz(Maximum)
Insulation resistance: ≥500MΩ
Subdivision range: 400~25600ppr
